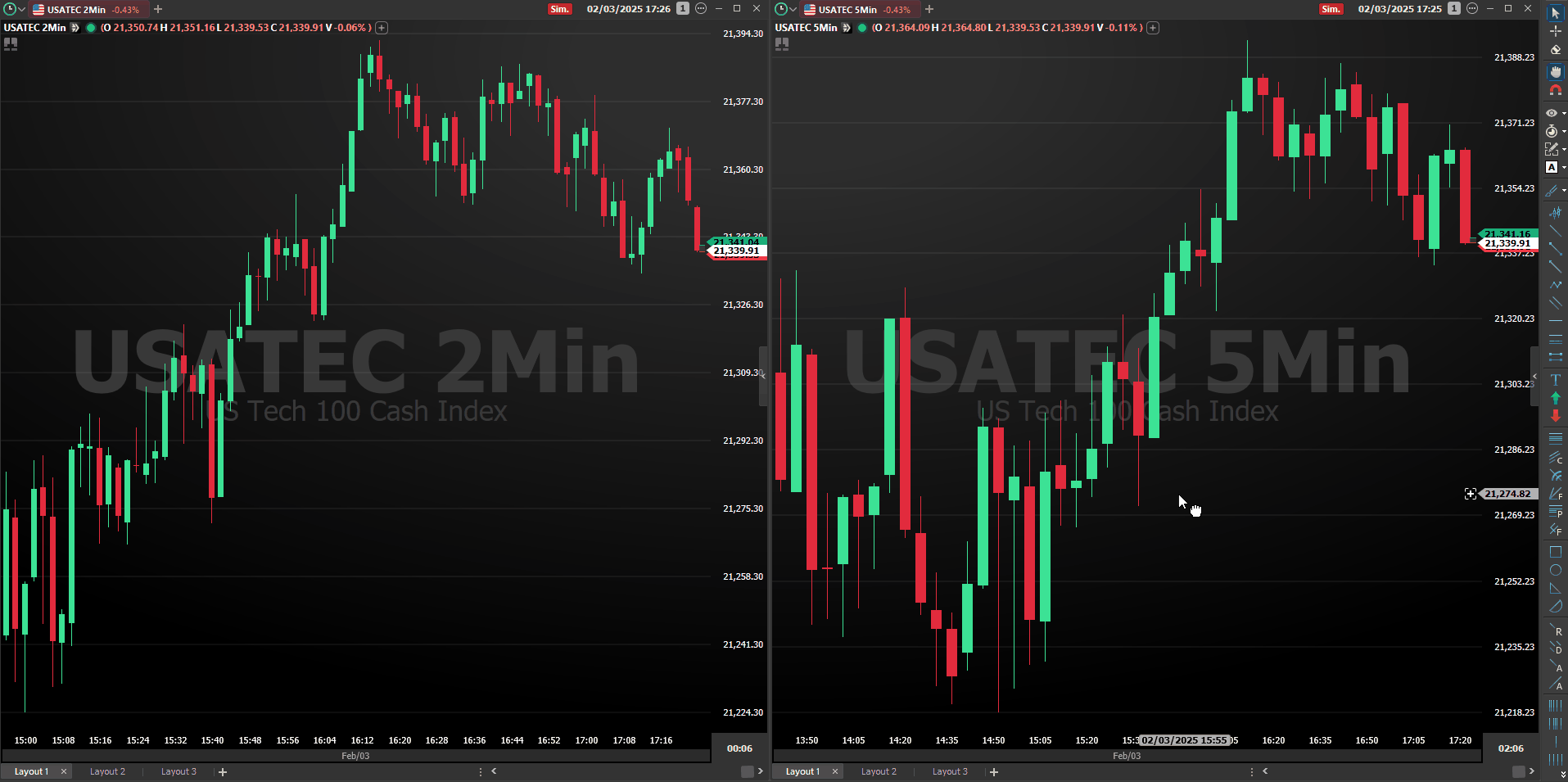

The studies are synchronized per asset, which means that they will be applied to all its charts. For example, with two USATEC chart windows open, inserting a price level line in one chart, it will replicate it to the other:
To separate the studies on the graphs of the same asset there are the following options:

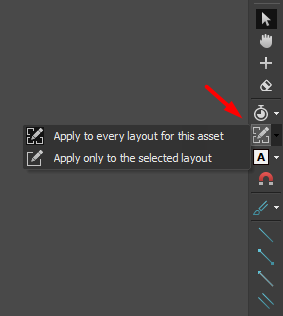

- Before designing a study, you can choose to apply it to all layouts or only to the selected one, in the highlighted option of the Study Toolbar:

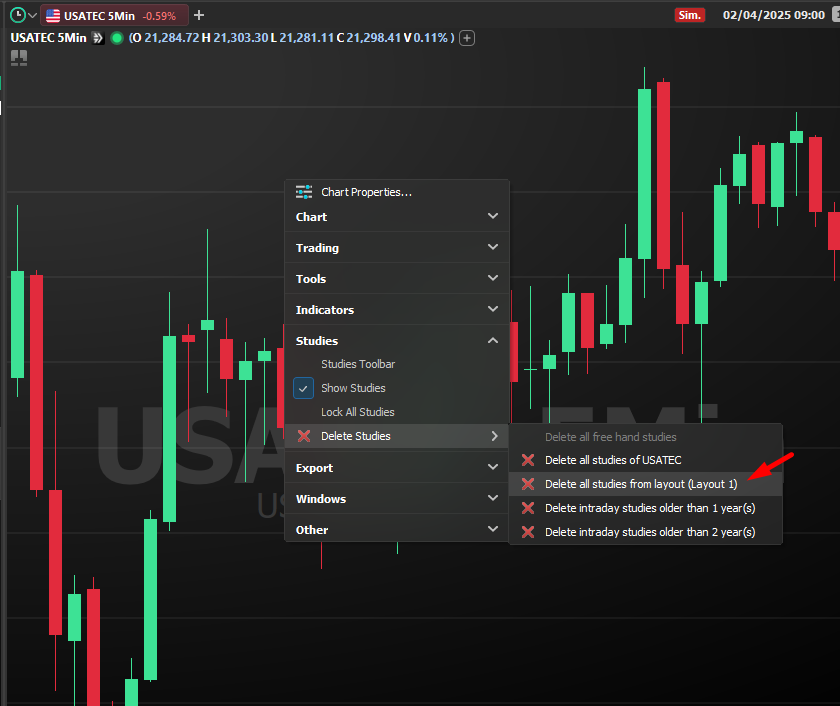

- To remove studies from the current layout, right-click on the graph and under Studies Options select the respective alternative:

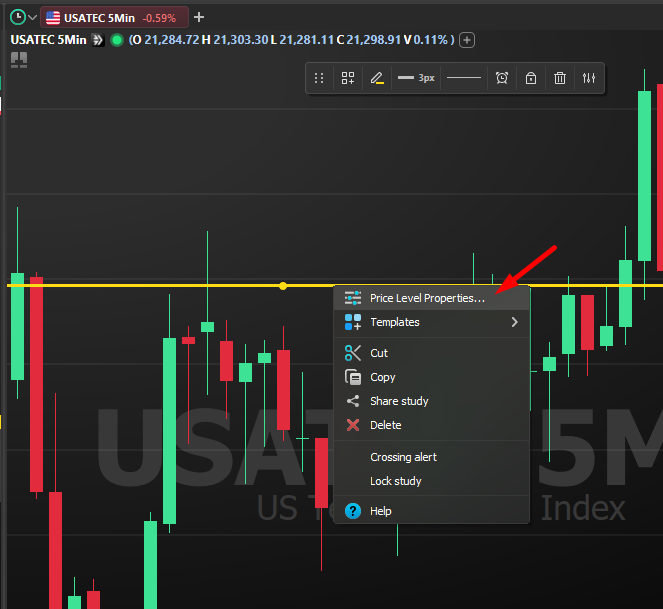

- It is also possible to customize each study individually by layout or graphic time by right-clicking on the study and opening Properties:

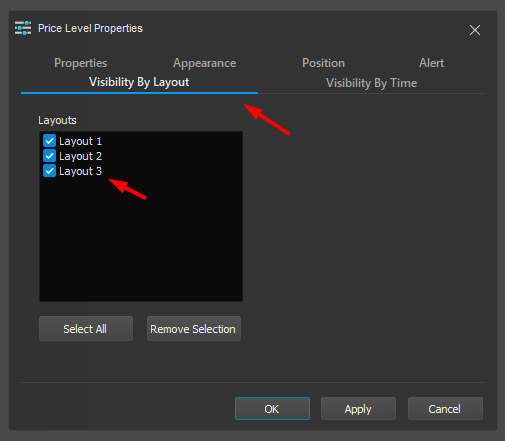

In Visibility By Layout, select only the layouts in which the study should be displayed:

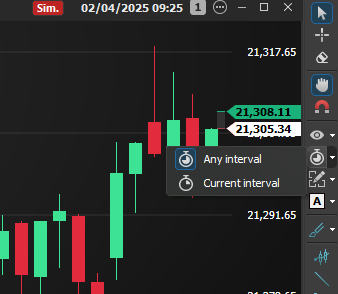

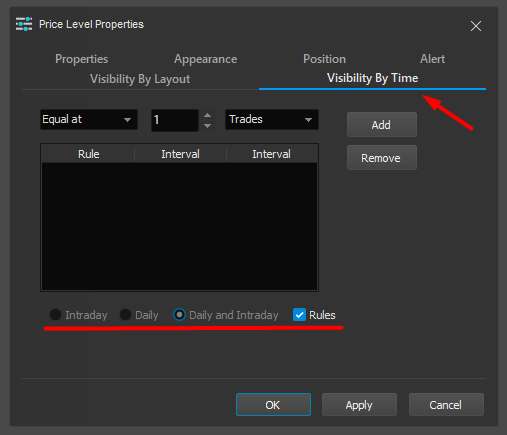

In Visibility by Time, create rules and determine in which periods the study should be viewed: - In Studies by Interval it is possible to apply studies in Any Interval or Current Interval.
